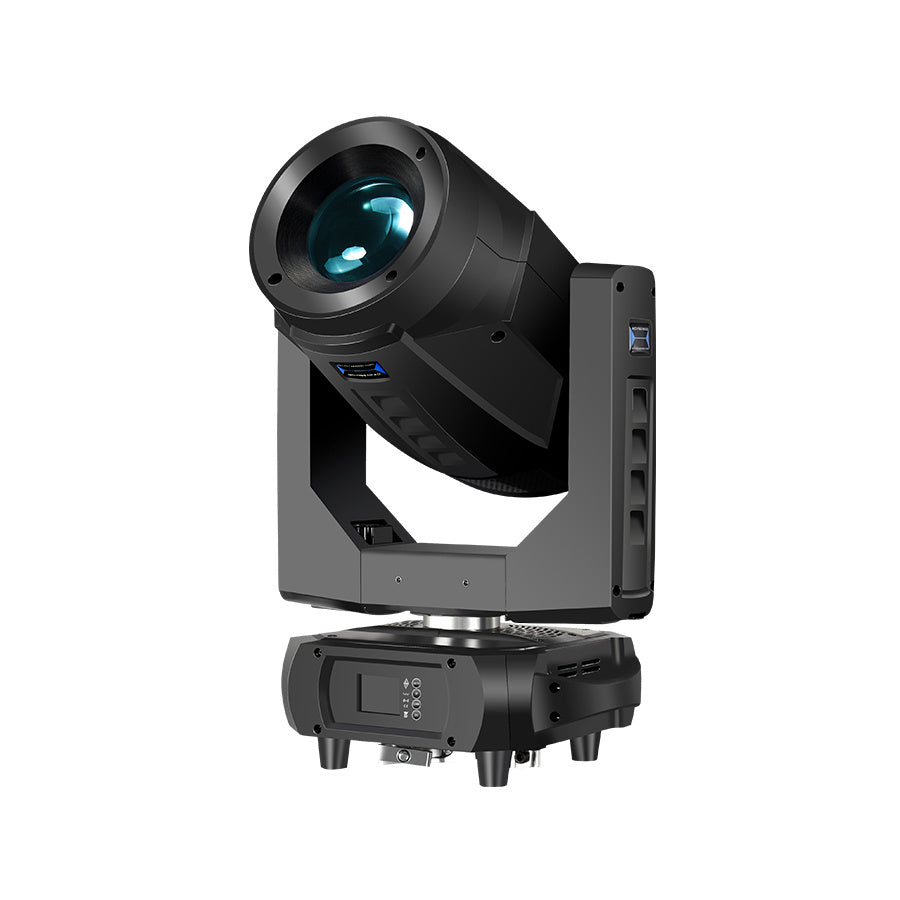

600W LED Spot Framing Moving Head Light – High-Precision Performance for Professional Events
The 600W LED Spot Framing Moving Head Light features a powerful 550W LED module that delivers exceptional brightness and long-range beam projection. Designed for high-demand environments, this fixture ensures reliable performance with fast and fluid pan/tilt movement, ideal for dynamic lighting effects on stage or screen.

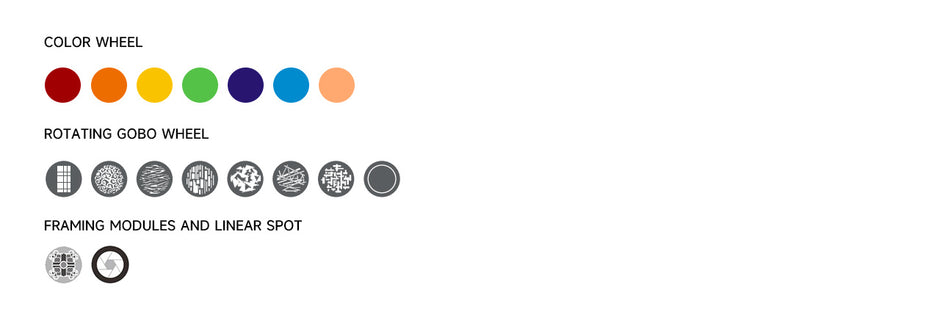

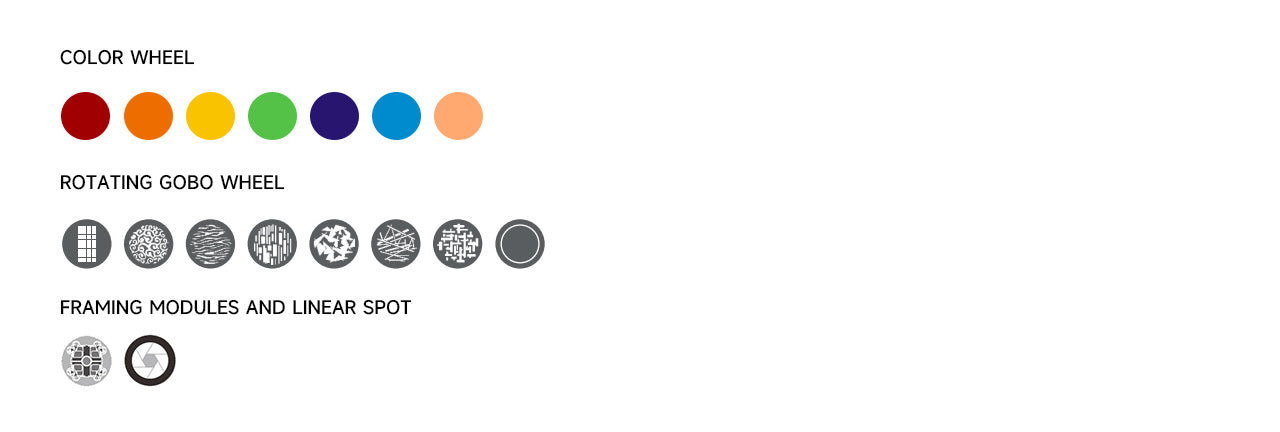

Equipped with a rotating gobo wheel that includes 7 high-precision gobos plus open, it enables crisp, versatile pattern projection. The color wheel offers 7 vibrant colors plus open, delivering rich and uniform color output with smooth transitions.
A standout feature is its advanced framing system, which uses four independently controlled cutting blades. Each blade can be precisely adjusted for fast and accurate beam shaping, with full control over direction and angle. The entire framing module supports ±45° rotation, allowing flexible light shaping for detailed scene framing and mid-air effects.
Perfectly suited for TV productions, weddings, live events, and stage performances, the 600W LED Spot Framing Light combines power, precision, and professional-grade control in one compact unit.

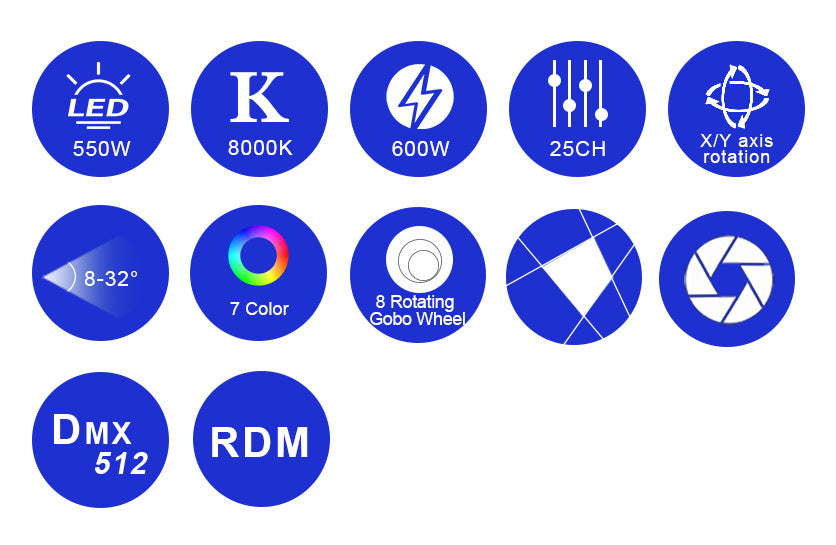

| Category | Details |
|---|---|
| Model | Lynx 600F |
| Light Source | 550W LED Module |
| LED Life Expectancy | 20,000 hours |
| Optical System | Advanced optics for sharp gobo and color projection |
| Front Lens Diameter | 115 mm |

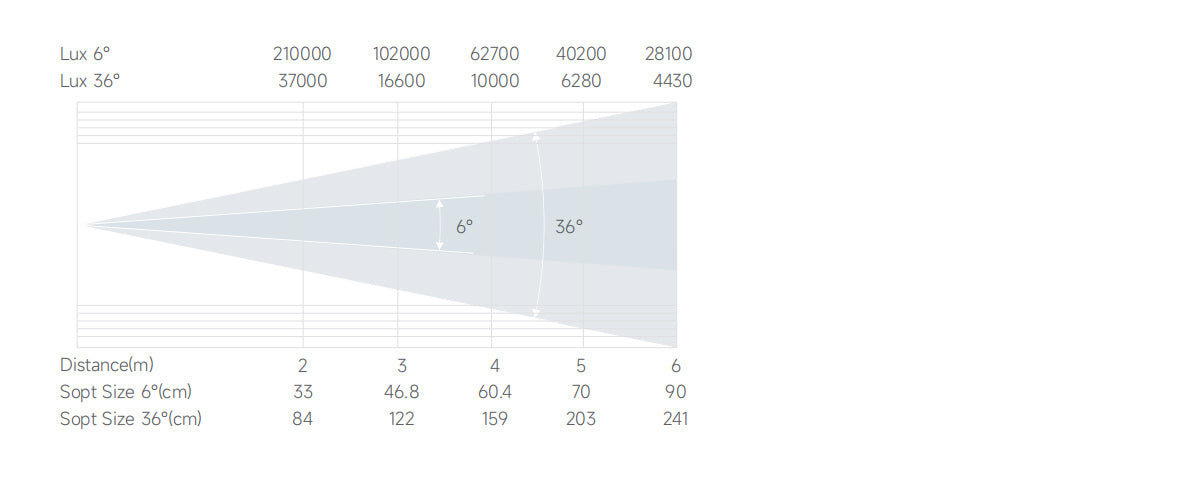

| Beam Angle | 8°–32° |
| Control Interface | Rotating button with LCD display |
| Control Protocols | DMX512, RDM |
| DMX Channel Modes | 25 channels |
| Firmware Upgrade | Upgrade via DMX link |
| Pan Movement | 540° |
| Tilt Movement | 270° |
| Pan/Tilt Resolution | 16-bit with automatic position correction |
| Rotating Gobos | 7 high-precision gobos + 1 open |
| Color Wheel | 7 colors + 1 open |
| Power Supply | Electronic auto-ranging, 100–220V~ 50/60Hz |
| Power Consumption | 600 W |

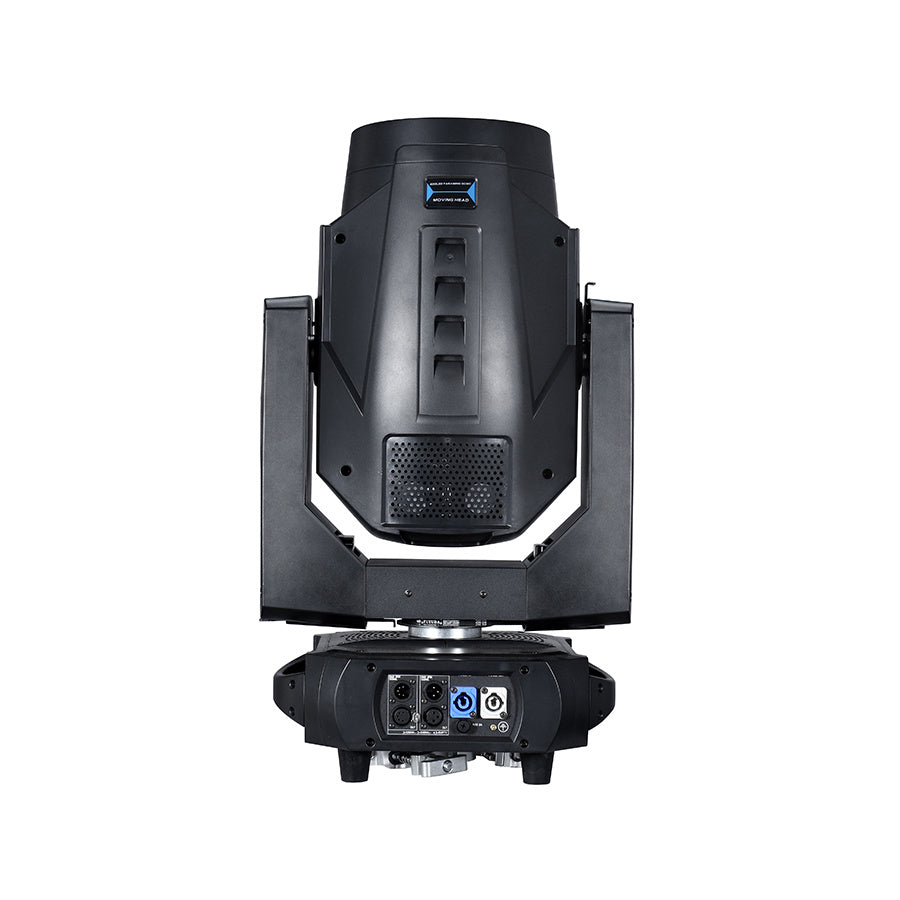

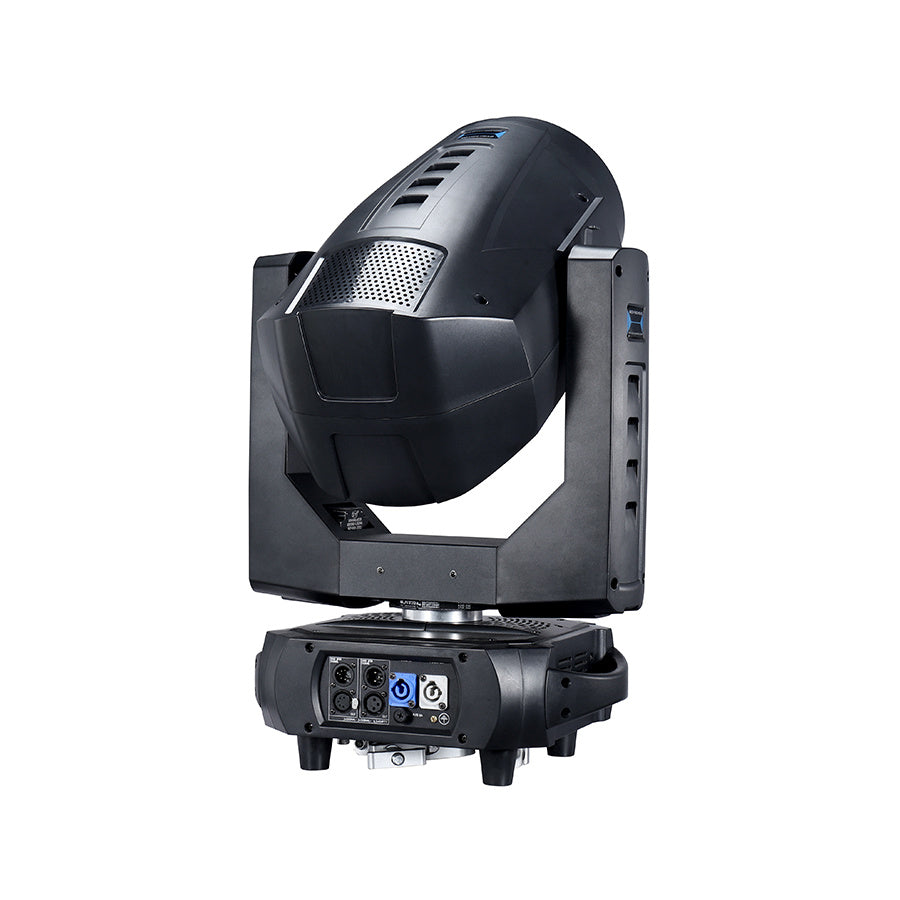

| Power Connections | Power Connector In/Out |
| Data Connections | 3-pin & 5-pin XLR |

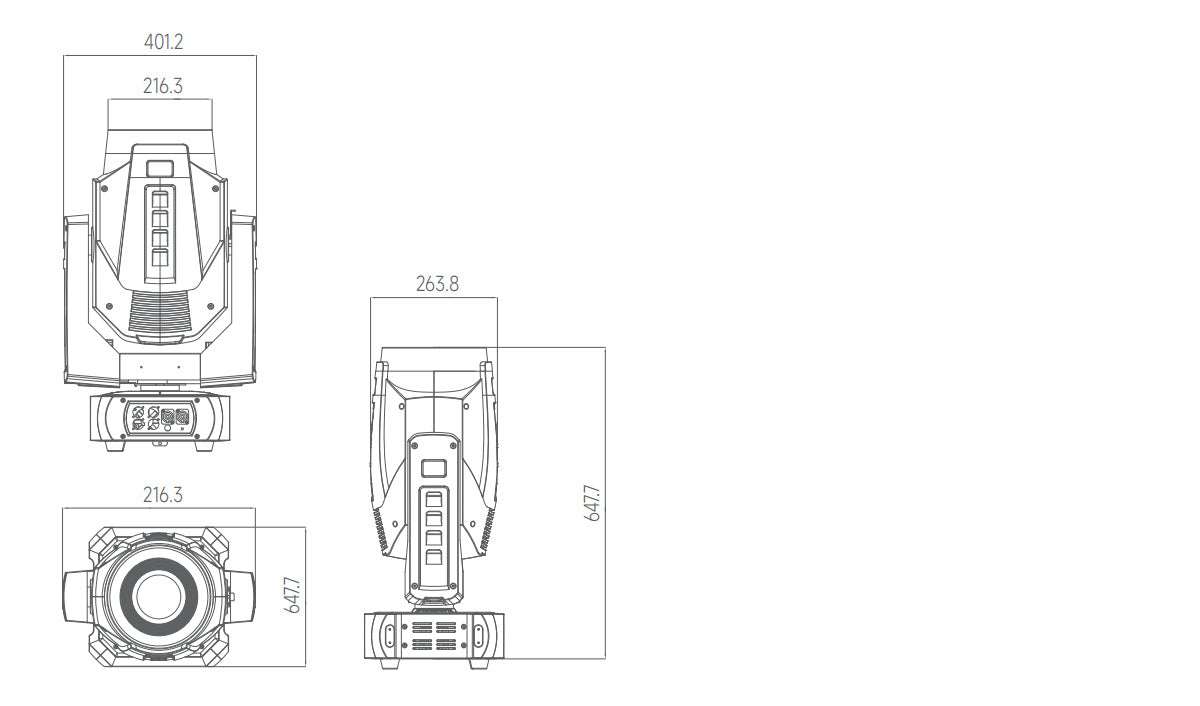

| Fixture Dimensions (H×W×D) | 647.7×401×290 mm (25.5"×15.79"×11.42") |
| Net Weight | 20.7 kg (45.64 lbs) |
| Flight Case Dimensions | 900×660×550 mm (35.43"×25.98"×21.65") |
| Weight in Flight Case | 79.5 kg (175.27 lbs) |
| Max Ambient Temperature | 40°C |
| Max Surface Temperature | 65°C |
| Min Operating Temperature | 0°C |
| Protection Rating | IP20 |
| Factory Configuration | Digital User Manual, Power Cable, 2× clamps for 50mm truss |
