Underwater Lighting. Engineered for IP68 Submersion.
HydroSystems® Underwater Lighting covers two product families:

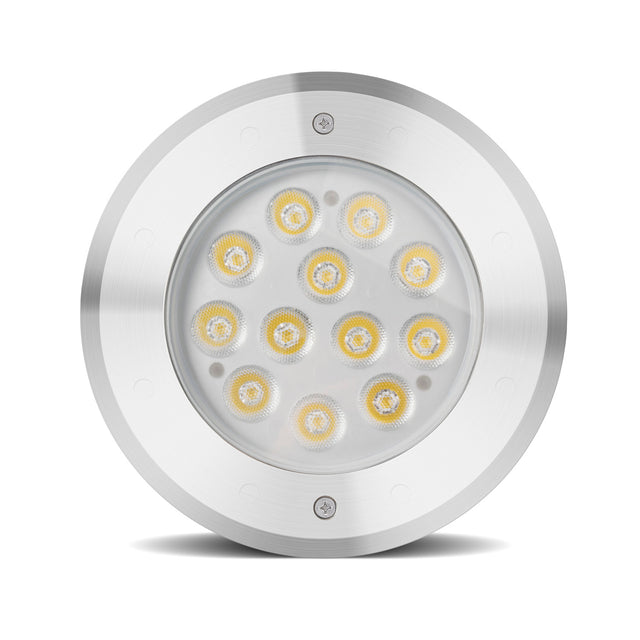

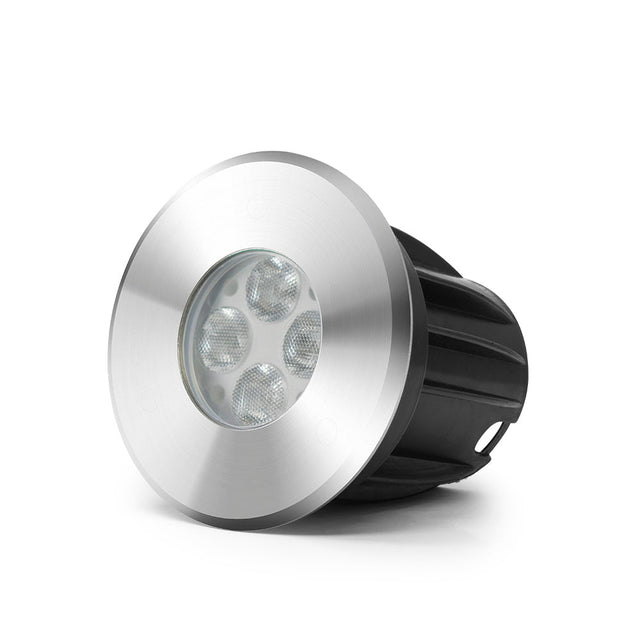

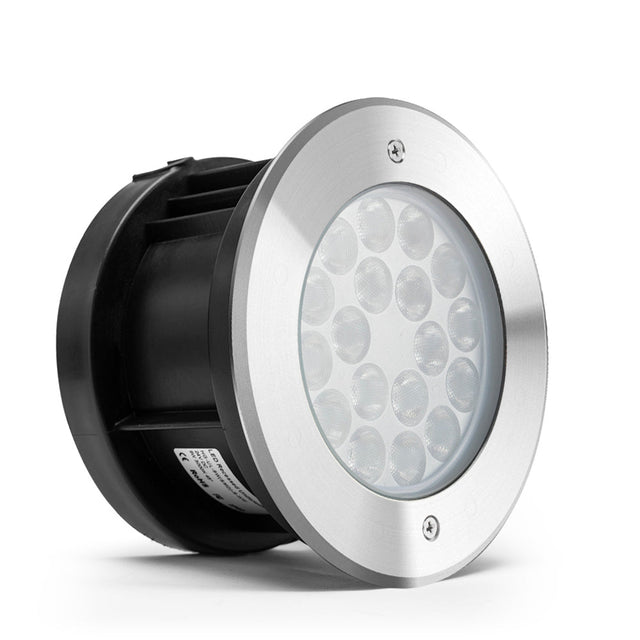

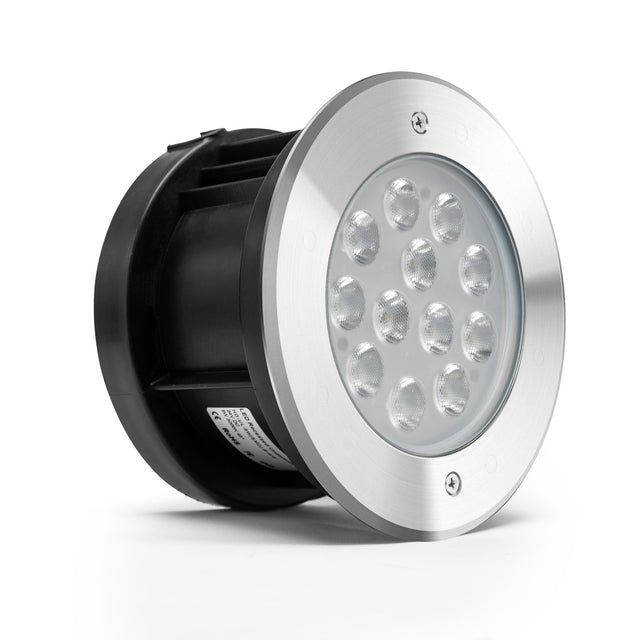

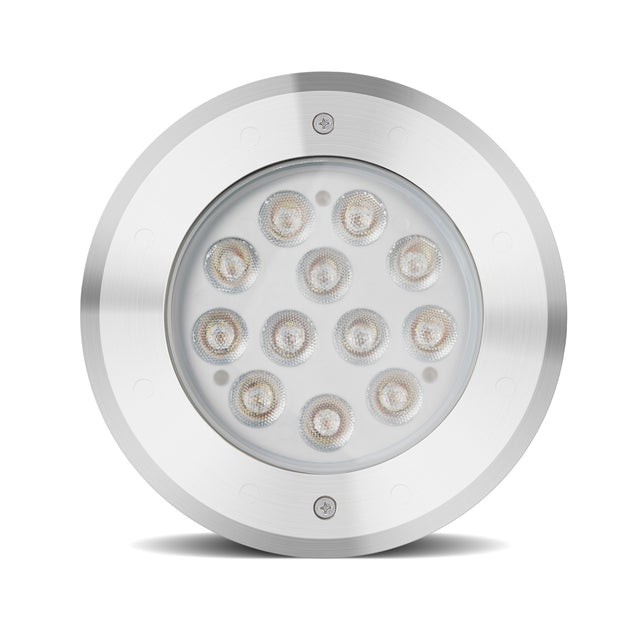

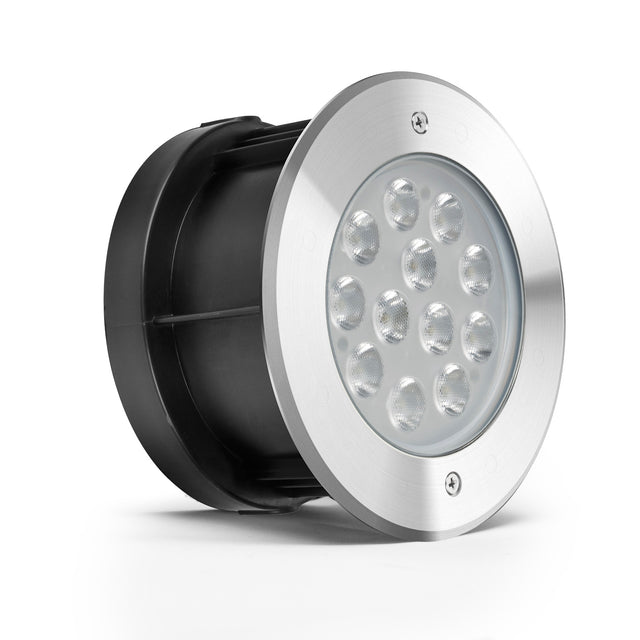

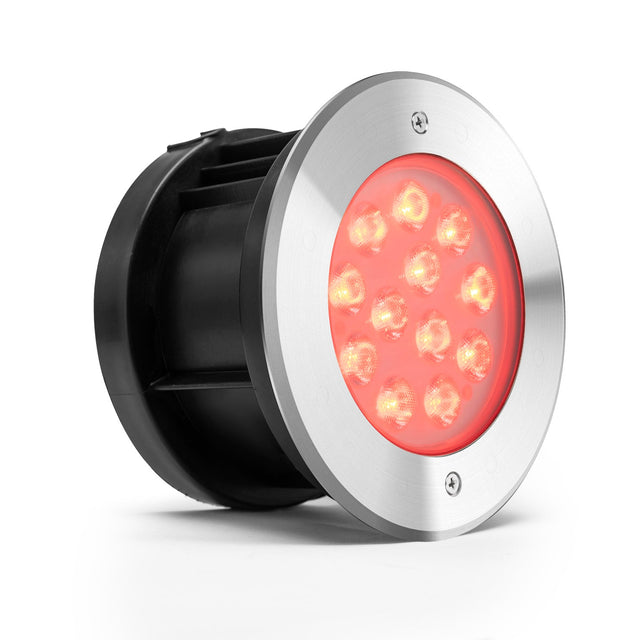

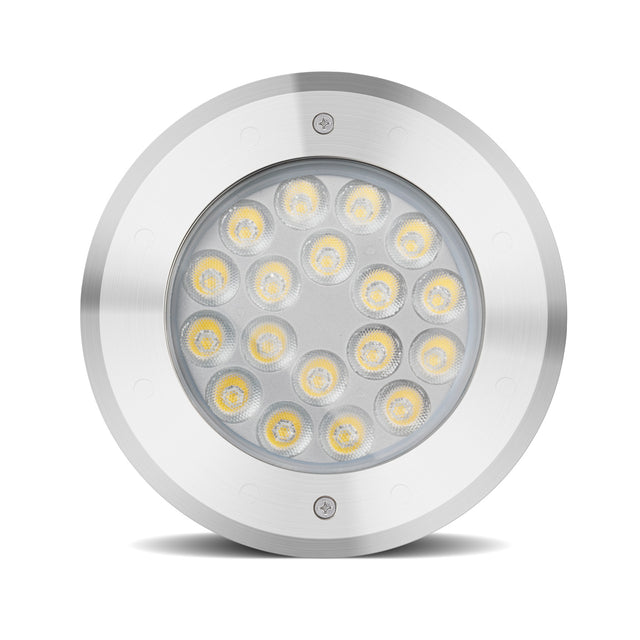

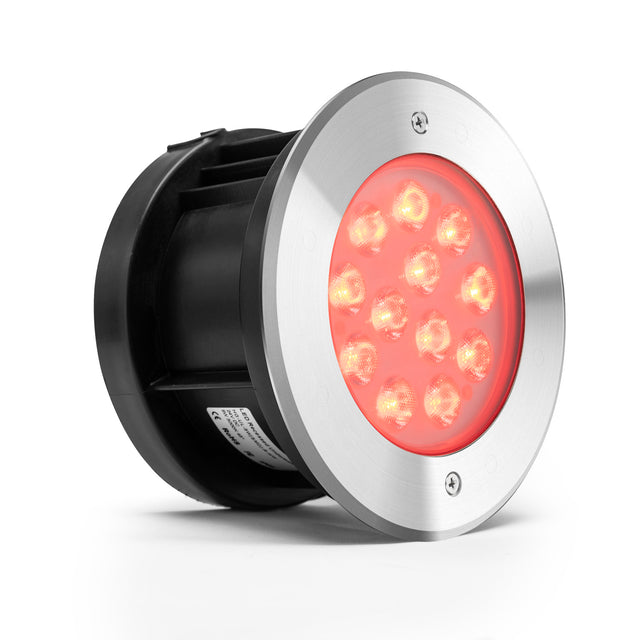

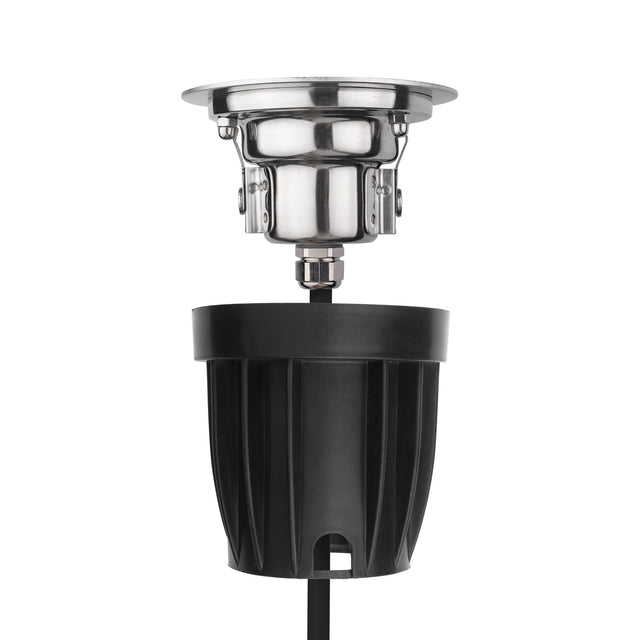

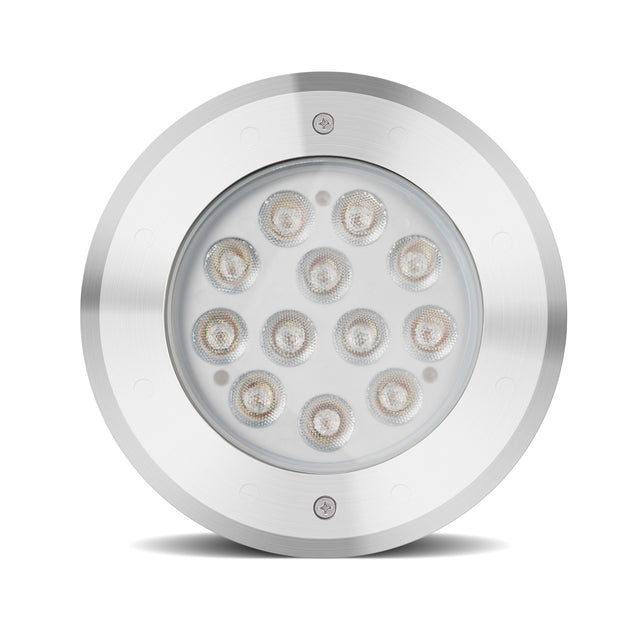

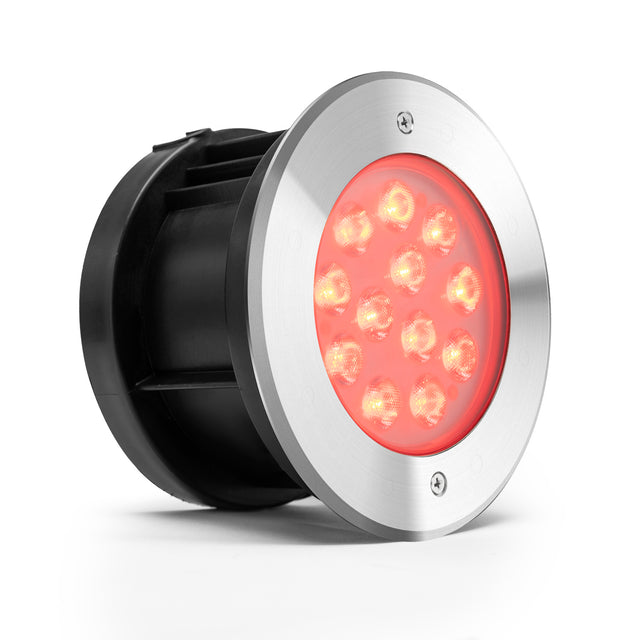

- AquaFlush® - recessed flush-mount underwater lights, IP68, sit flush against pool walls, ponds, and tank surfaces.

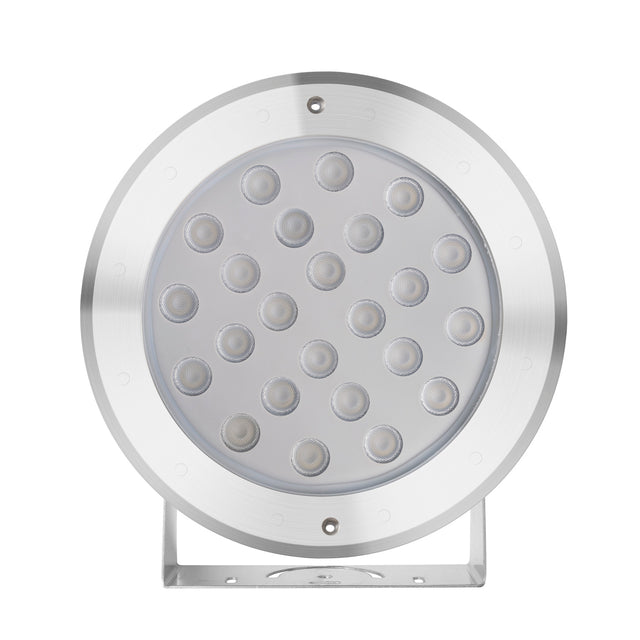

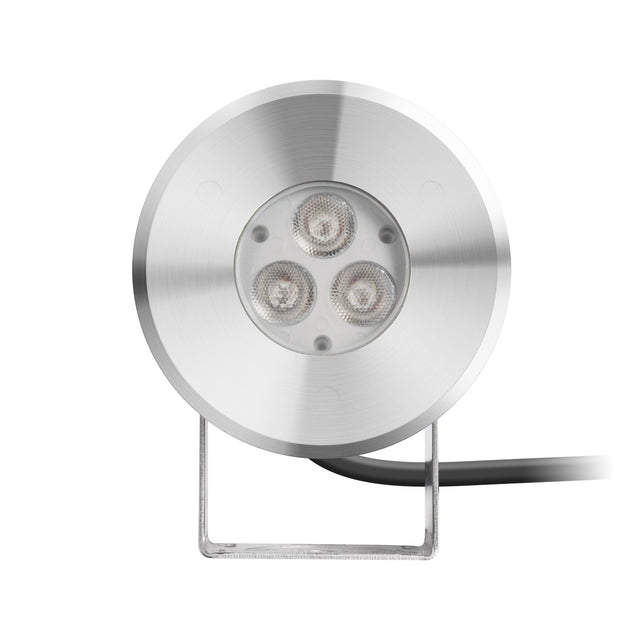

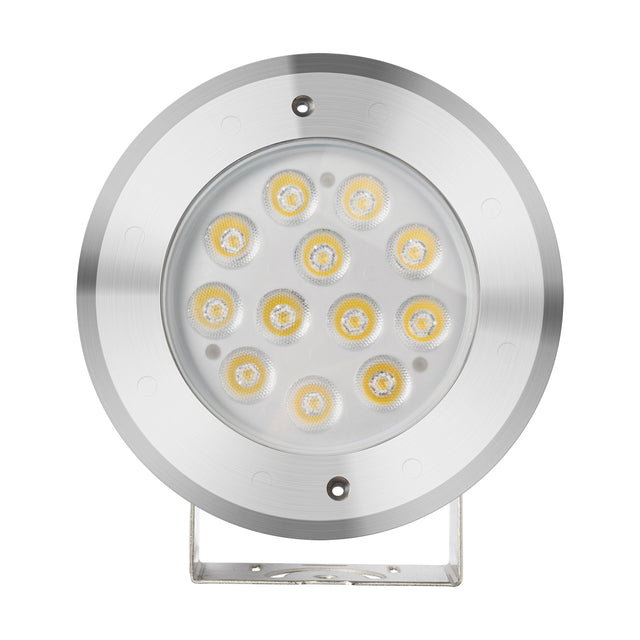

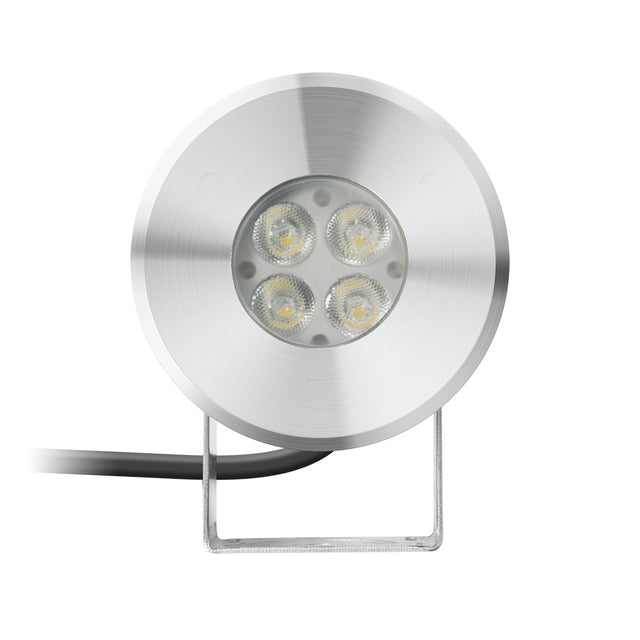

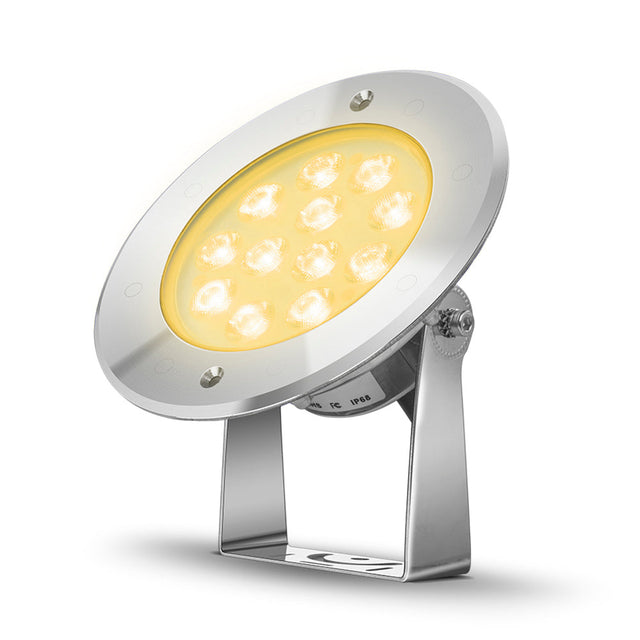

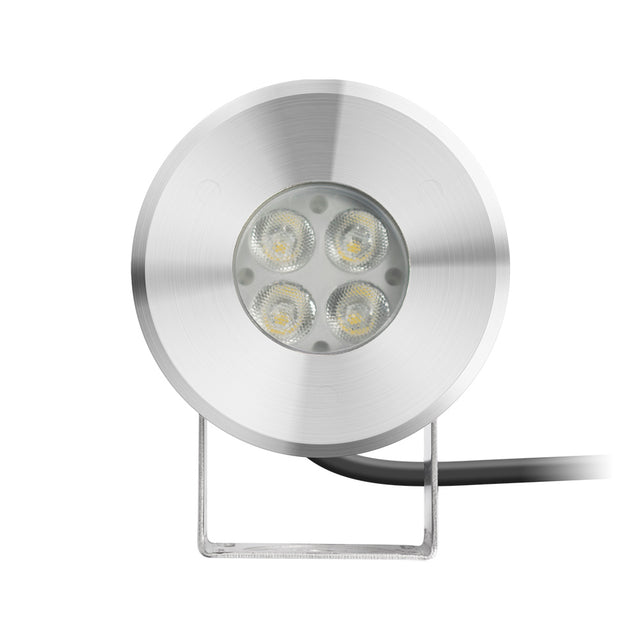

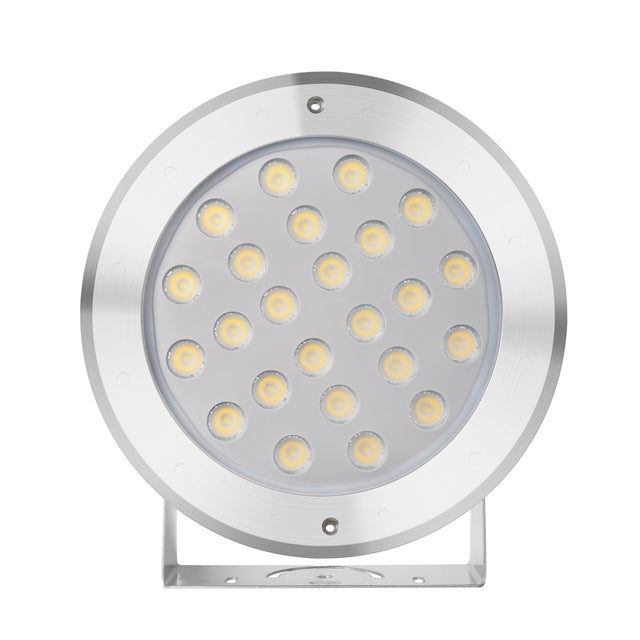

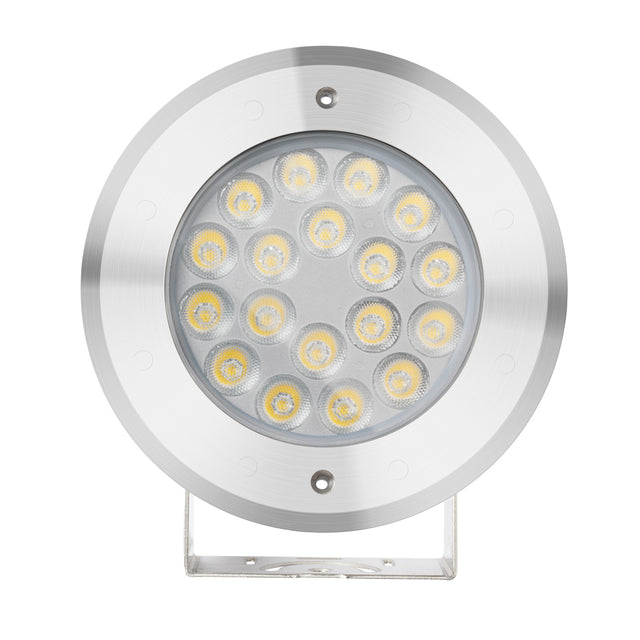

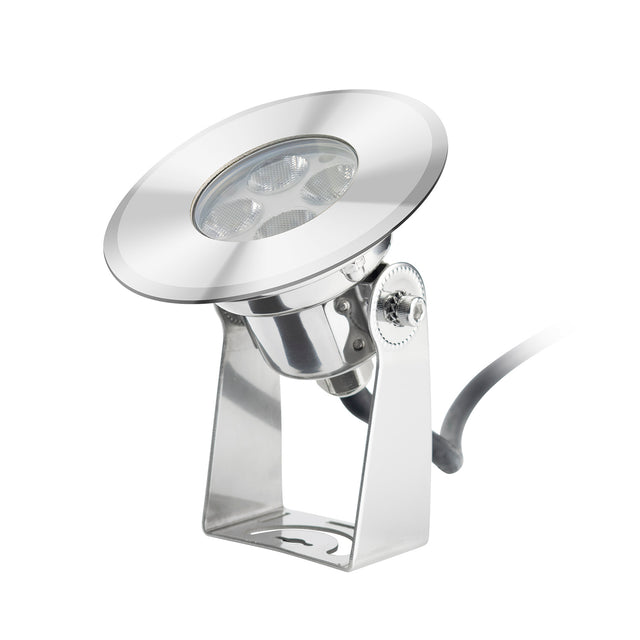

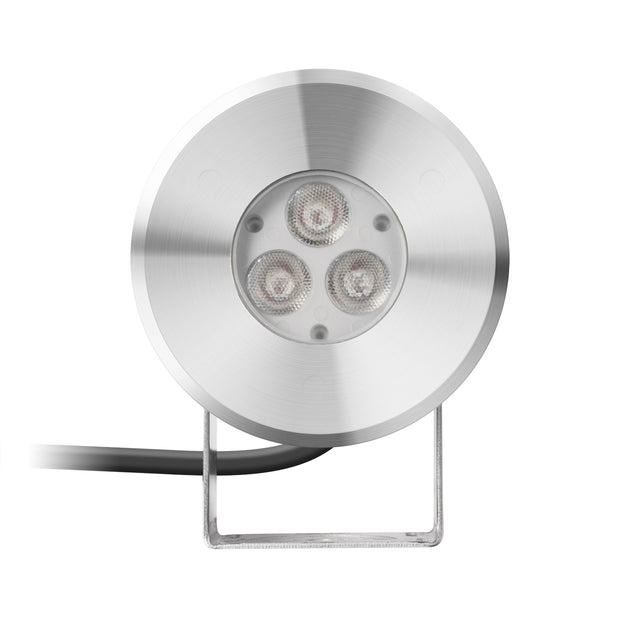

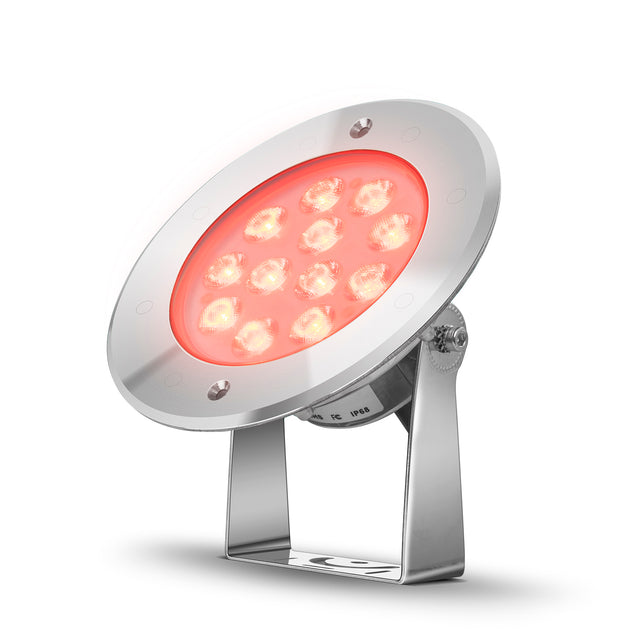

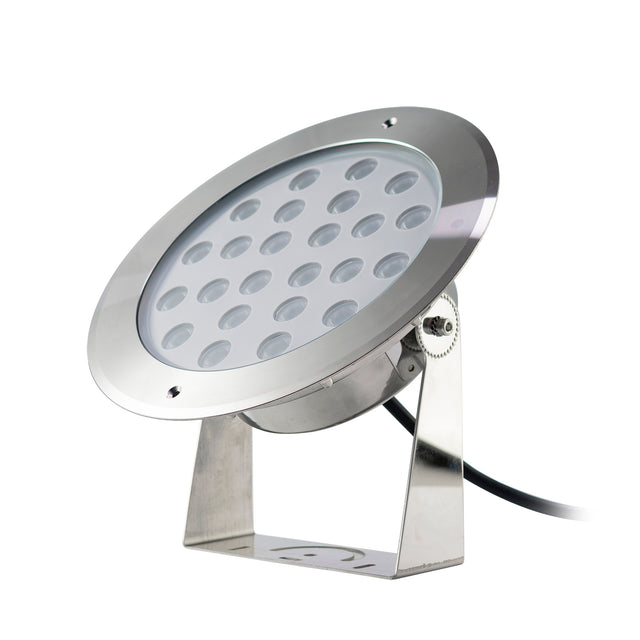

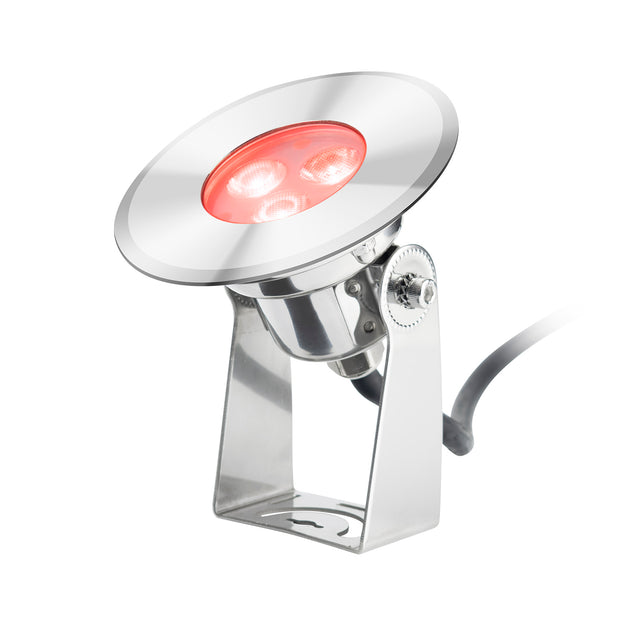

- AquaBeam® - underwater projector lights, IP68, designed for directional beam projection and feature lighting underwater.
Every fixture is built around a SS316L stainless steel body with an IK10-rated tempered glass front, rated 24V DC, and available in Pure White or Chromatherapy RGB (Tuya app / external RGB controller). Wattages range from 3W to 48W across three housing diameters (Ø98mm, Ø150mm, Ø220mm).

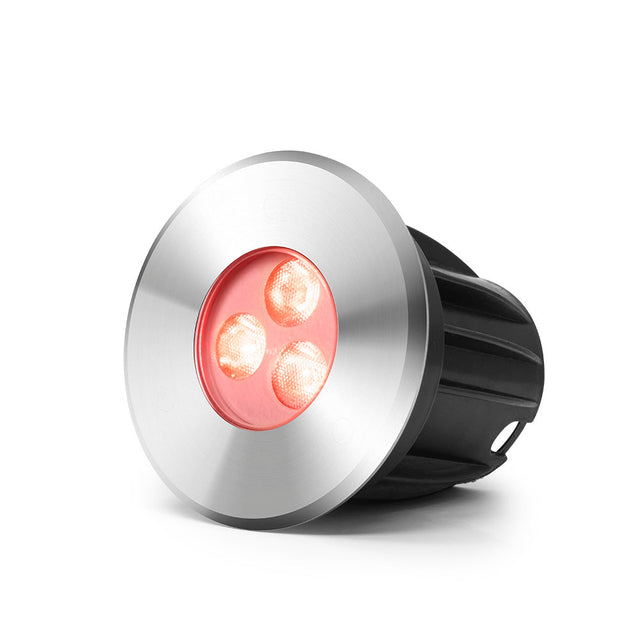

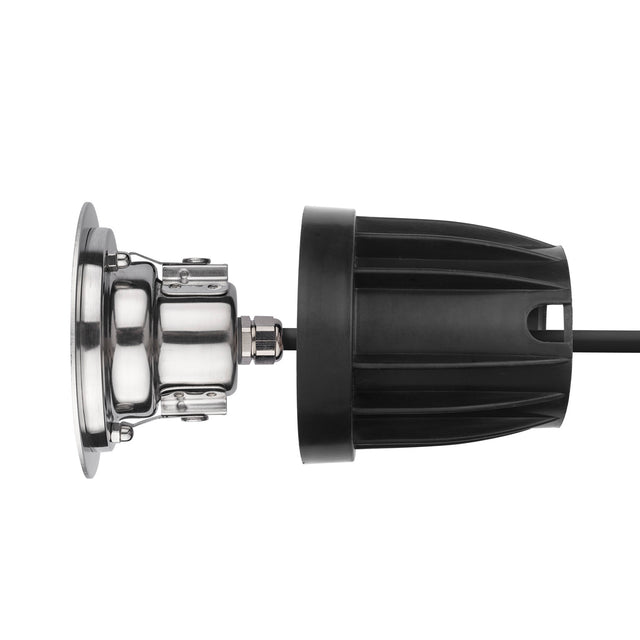

AquaFlush Recessed Underwater Lights Series

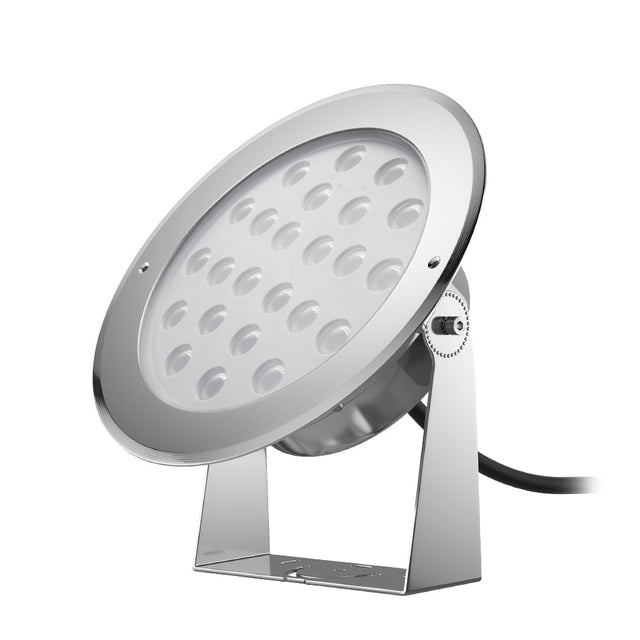

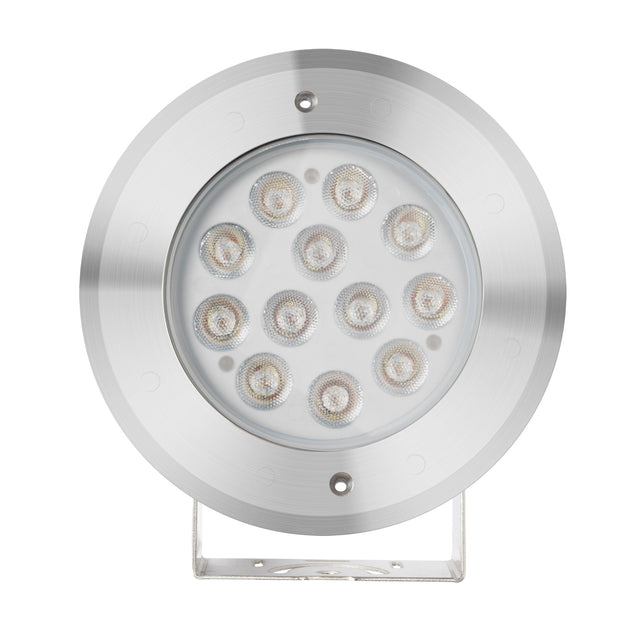

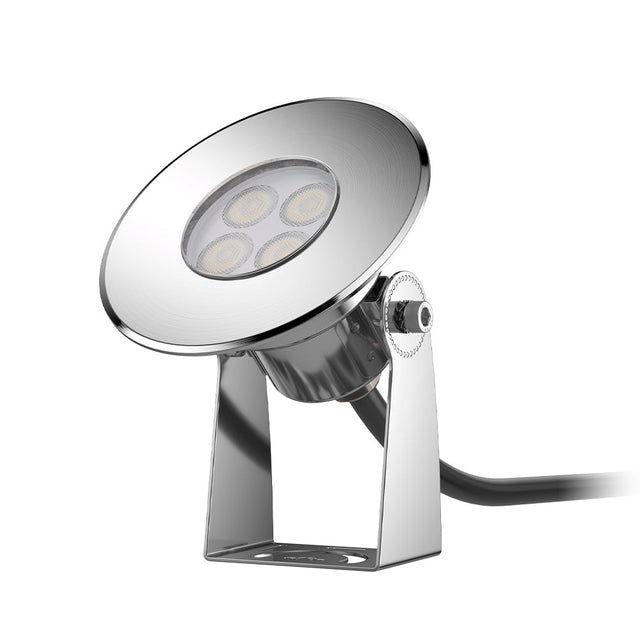

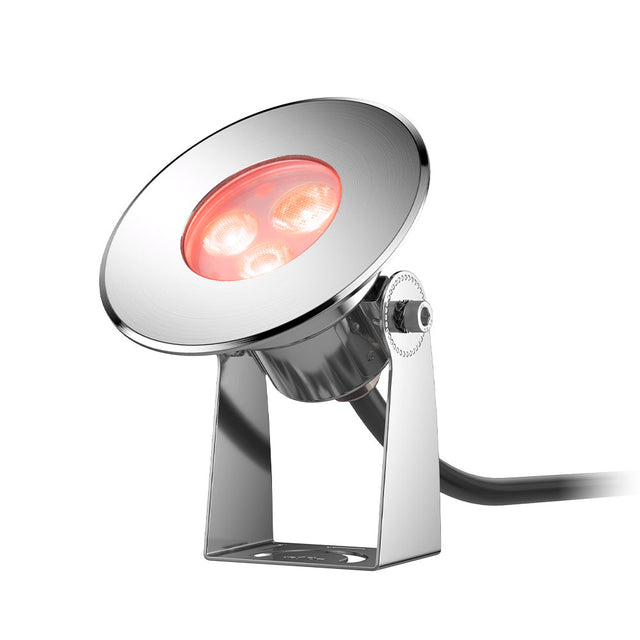

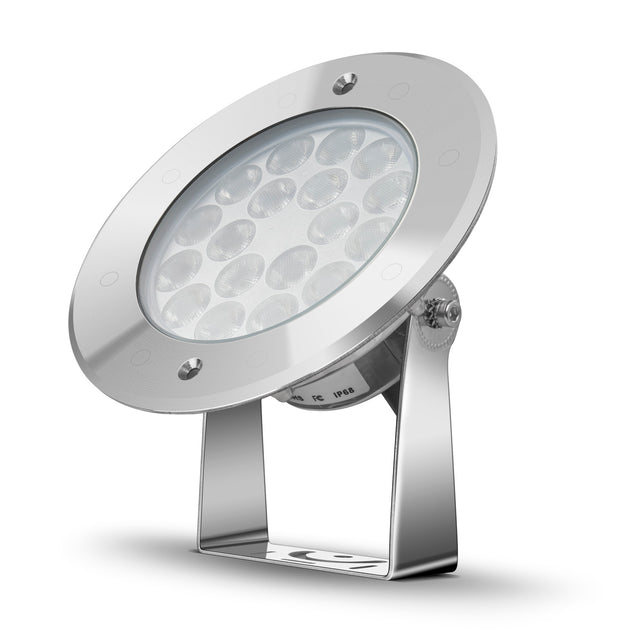

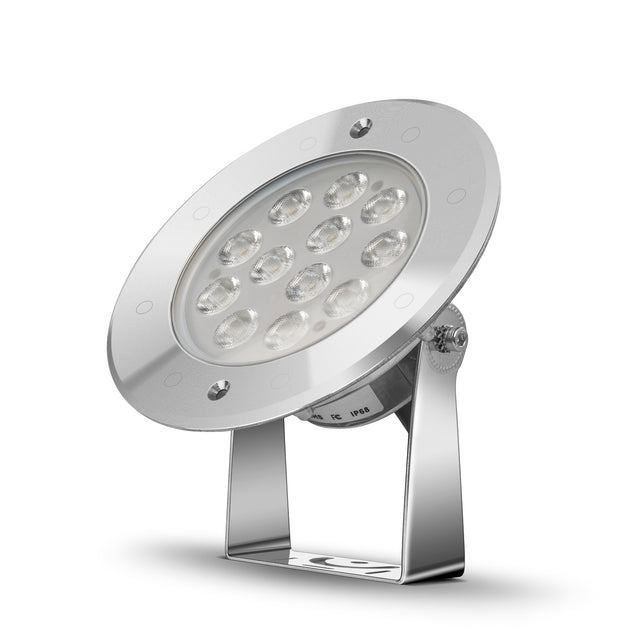

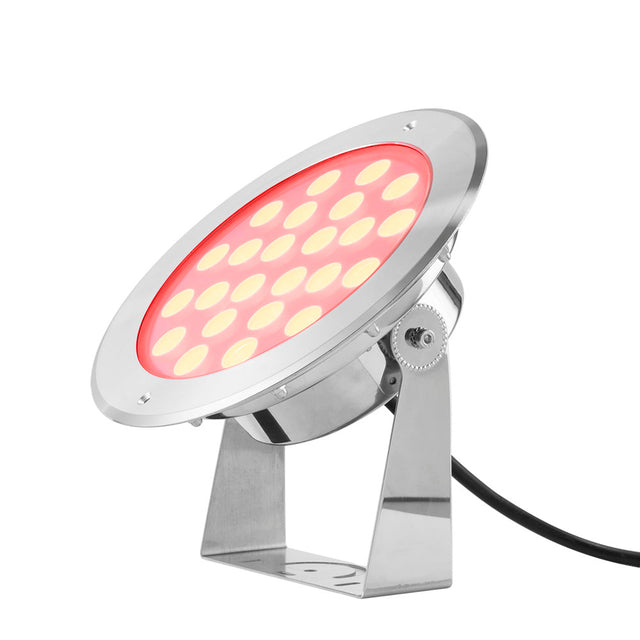

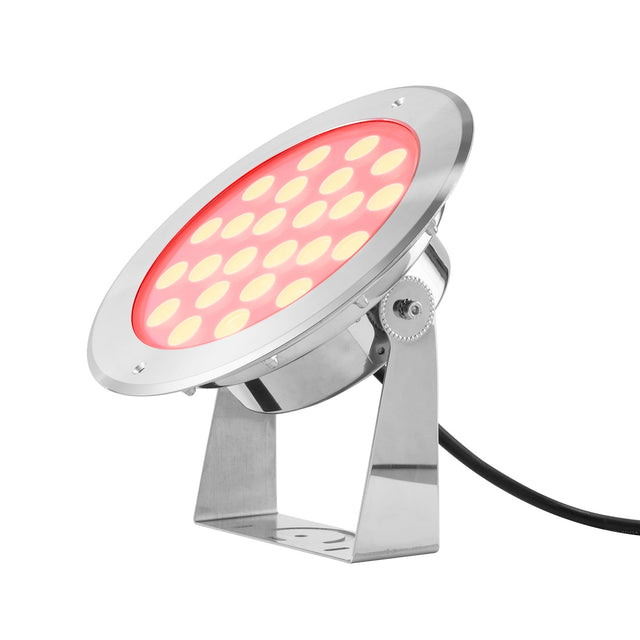

AquaBeam Underwater Projector Lights Series
Description
The Bmiteq HydroSystems® AquaBeam 48W is the absolute zenith of our commercial-grade directional underwater portfolio. Engineered exclusively for the most colossal aquatic environments, this apex-tier projector utilizes a massive Ø220 mm profile to drive a staggering, high-intensity 4000-lumen beam. It is the definitive optical solution built to conquer extreme photometric challenges, effortlessly uplighting towering municipal fountains, illuminating massive architectural waterfalls, and bringing uncompromising directional focus to mega-resort lakes and grand public monuments where maximum light penetration is non-negotiable.
Forged entirely from ultra-premium, low-carbon marine-grade SS316L stainless steel and shielded by a heavy-duty IK10 tempered glass lens, the AquaBeam 48W is meticulously designed to permanently withstand relentless chemical exposure, extreme turbulent water flow, and deep-water hydrostatic pressure at maximum depth. Operating on a strictly low-voltage 24V DC platform, this titan-class luminaire delivers absolute electrical isolation in submerged environments while guaranteeing a highly stable, flicker-free beam of crisp Pure White light, transforming the world's most massive bodies of water into intensely luminous architectural masterpieces.
Key Features
- Staggering Optical Targeting: Surface-mounted projector architecture allows for precise, adjustable aiming combined with an unparalleled 4000-lumen throw, making it perfect for catching the highest commercial fountains and heaviest water cascades.
- Monumental Ø220 mm Profile: A massive, commanding architectural footprint providing superior thermal management and a luxurious structural presence for stadium-scale aquatic environments.
- Ultra-Marine Grade SS316L Construction: Precision-forged from low-carbon, high-alloy stainless steel, providing definitive defense against pitting, heavy chlorination, and aggressive commercial saltwater sanitizing systems.
- True IP68 Submersible Performance: Engineered with a specialized multi-tier hermetic mechanical gasket network, completely eliminating the risk of water ingress under continuous, extreme deep-water pressure.
- IK10 Structural Resilience: Toughened tempered glass face shield confidently handles extreme physical stress, heavy aquatic debris, and high-velocity water movement from industrial-capacity fountain pumps.
- Safe Low-Voltage Engineering: Operates on a highly stable 24V DC platform, strictly adhering to international electrical safety standards for heavily trafficked public and commercial wet-environments.
Technical Specifications
| Parameter | Engineering Specification |
| Brand / Line | Bmiteq / HydroSystems® AquaBeam |
| SKU / Part Number | BMQ-UWL-48W-W |
| Power Consumption | 48W (±10% operational tolerance) |
| Operating Voltage | 24V DC |
| Luminous Flux | 4000 Lumens (±10% tolerance) |
| Color Temperature | Pure White / Static Single Color |
| Beam Angle Options | 15° to 60° |
| Ingress Protection | IP68 (Certified Submersible / Underwater Only) |
| Impact Protection | IK10 |
| Materials | Marine-Grade SS316L Stainless Steel + Toughened Tempered Glass Cover |
| Dimensions | Ø220 mm diameter × 225 mm overall length |
| Control Interface | Non-Dimmable / Static Single Color |
| Warranty | 2 Years |
