Bmiteq Rambo Legend IV 480
50Low stock
50In stock, ready to ship
Innovative Technology
User-Friendly Design
Reliable Performance
Impossibile caricare la disponibilità di ritiro
Description

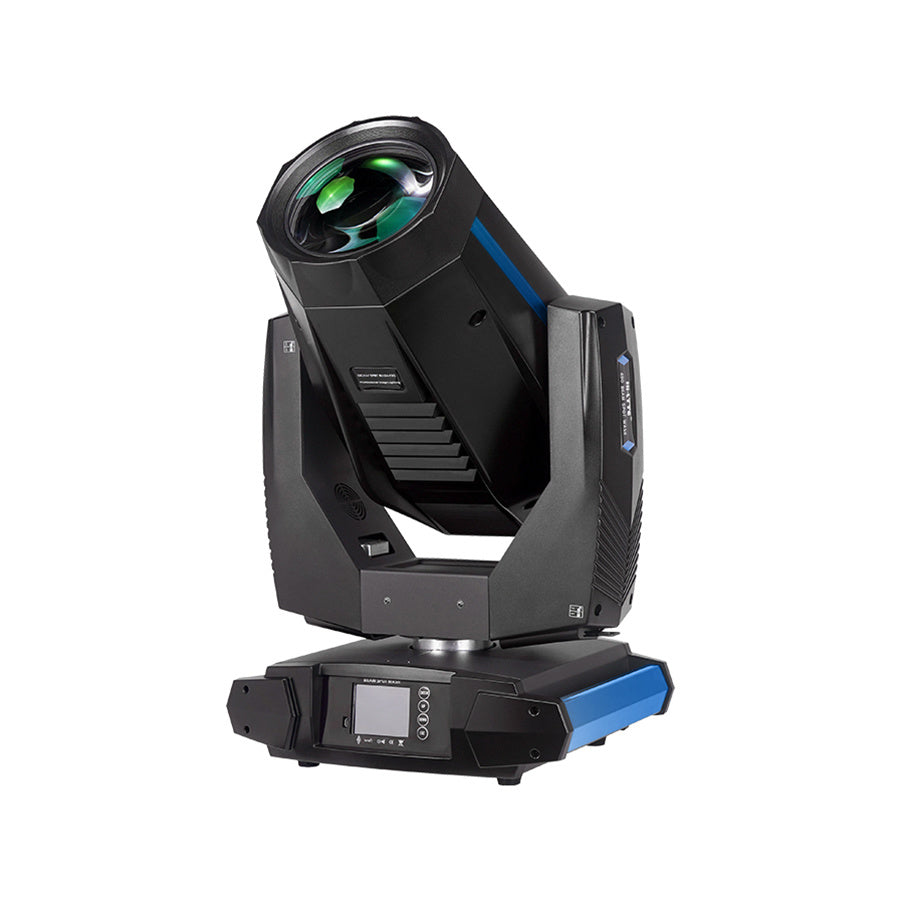

Rambo Legend IV – 461W Beam Spot Wash Hybrid Fixture for High-Impact Lighting
The Rambo Legend IV is a powerful beam/spot/wash hybrid lighting fixture, designed for large-scale professional applications such as concerts, stadiums, theaters, and TV studios. Equipped with a high-output 461W Osram lamp, this fixture delivers brilliant, concentrated light with outstanding clarity and performance.
It features a flexible gobo system, including 14 static gobos plus open and 9 rotating glass gobos, enabling sharp in-air and surface projections with precision and detail. The output is vibrant and visually impactful, ideal for creating complex lighting designs.
To expand creative possibilities, the fixture includes rotating prism effects with 6-facet linear and 8-facet circular prisms, offering wide-reaching and immersive beam splitting effects. The integrated frost filter allows users to seamlessly transition from focused projections to smooth, even washes.
With a 13-color wheel offering a rich palette of vivid hues, the Rambo Legend IV is built to support bold, atmospheric lighting environments. Whether used in high-energy shows or elegant productions, this fixture provides the versatility, brightness, and reliability professionals demand.
| Category | Details |
|---|---|
| Model | RAMBO LEGEND IV |
| Light Source | 461W Osram Lamp |
| Optical System | Advanced optical design for sharp gobos and vibrant colors |
| Front Lens Diameter | 150 mm |
| Zoom Angle | 1.8°–52° |
| Control Interface | 4-button touch panel with LCD display |
| Control Protocols | DMX512, RDM |
| DMX Channel Modes | 24 channels |
| Firmware Upgrade | Via DMX link |
| Pan Movement | 540° |
| Tilt Movement | 270° |
| Pan/Tilt Resolution | 16-bit with automatic position correction |

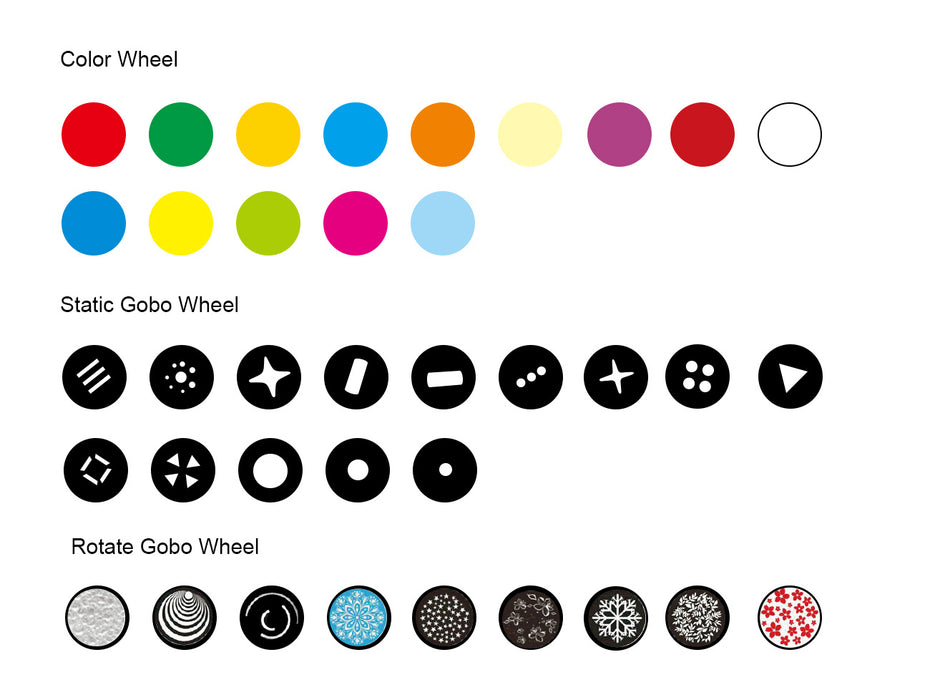

| Static Gobos | 14 high-precision gobos + open |
| Rotating Gobos | 9 high-precision glass gobos + open |
| Rotating Gobo Specs | Image Ø: 12.5 mm, Outer Ø: 15.97 mm, Thickness: 1.1 mm (Max: 1.2 mm) |
| Color Wheel | 13 colors + open, dual color effect |
| Power Supply | Electronic auto-ranging, 100–220V~ 50/60Hz |
| Power Consumption | 625W |
| Power Connections | Power Connector In/Out |
| Data Connections | 3-pin or 5-pin XLR |

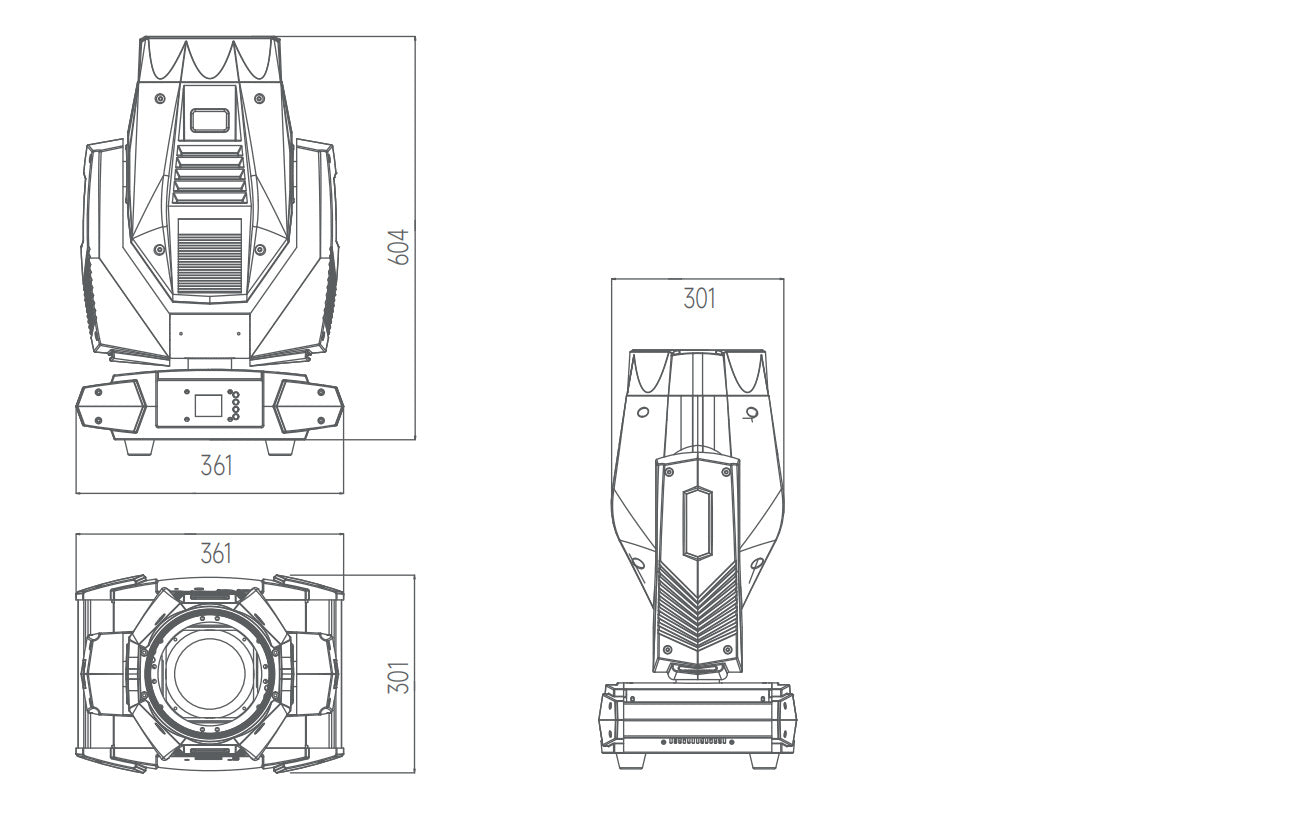

| Fixture Dimensions (H×W×D) | 361×301×604 mm (14.2"×11.9"×23.8") |
| Net Weight | 20.9 kg (46.2 lbs) |
| Flight Case Dimensions | 470×810×810 mm (18.5"×31.9"×31.9") – 2-in-1 Case |
| Weight in Flight Case | 73 kg (160.9 lbs) |
| Max Ambient Temperature | 40°C |
| Min Operating Temperature | 0°C |
| Protection Rating | IP20 |
| Factory Configuration | Digital User Manual, Power Cable, 2× Fast-lock clamps for 50mm truss |
