Bmiteq OptiFlex 600 BeamBar
500Low stock
500In stock, ready to ship
Innovative Technology
User-Friendly Design
Reliable Performance
Impossibile caricare la disponibilità di ritiro
Description

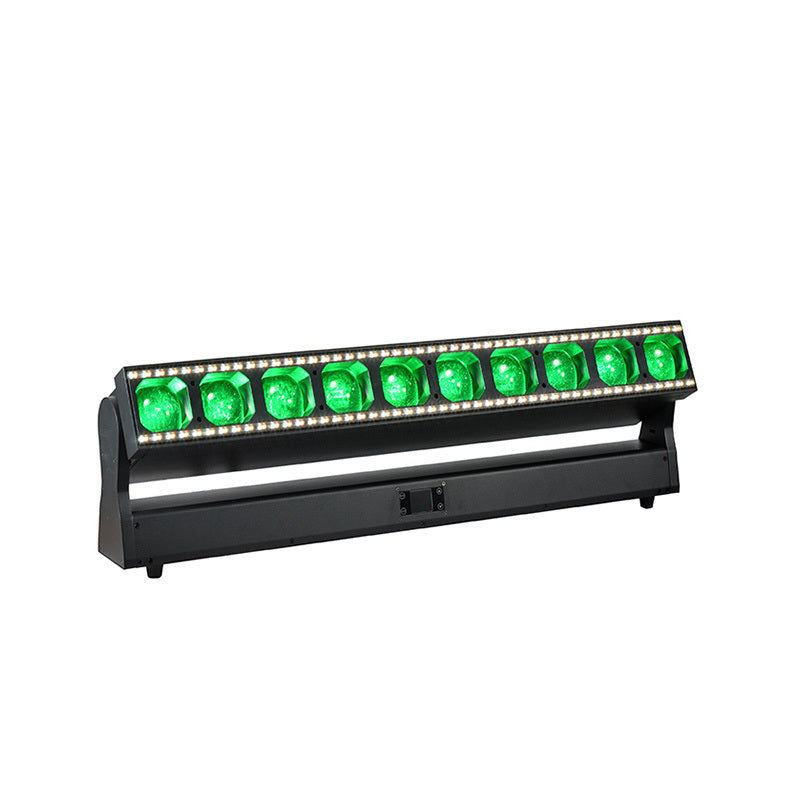

The OptiFlex 60 is designed for professional applications that demand superior performance and versatility. This fixture features an impressive array of 10 x 60W RGBW 4in1 LEDs, complemented by 96 x 1W cool white, 96 x 1W warm white, and 96 x 1W RGB 3in1 LEDs, ensuring a vibrant and dynamic lighting experience. With a life expectancy of 50,000 hours, the OptiFlex 60 promises longevity and reliability. The optical system boasts adjustable beam angles from 4° to 60°, producing a luminous intensity of 39,000 LUX at 5 meters, ensuring powerful illumination across a spectrum of color temperatures ranging from 2500K to 9000K. Its advanced control and program features include 270° tilt with fine adjustment, a 1.77-inch color LCD display, and the ability to update software via DMX connection. It supports multiple protocols such as DMX512, Auto-run, and Sound activated modes, offering 5 DMX protocol modes with control channels ranging from 17 to 168. Designed for versatility, the fixture includes a 0-100% linear dimmer, pixel control, and a strobe function operating at 25 times per second. The electrical system operates within an AC 90-240V range, consuming 850W. Robust and portable, the OptiFlex 60 comes housed in a durable flight case with optional accessories, making it the ultimate choice for indoor lighting needs.
| Category | Specification |
|---|---|
| Light Source | |
| Main LEDs | 10 x 60W RGBW 4-in-1 LEDs |
| Additional LEDs | 96 x 1W Cool White, 96 x 1W Warm White, 96 x 1W RGB 3-in-1 LEDs |
| LED Lifespan | 50,000 hours |
| Optical System | |
| Beam Angle | 4° – 60° |
| Luminous Intensity | 39,000 LUX at 5 meters (minimum angle) |
| Color Temperature Range | 2500K – 9000K |
| Control & Program | |
| Display | 1.77-inch Color LCD Display |
| Software Upgrade | Via DMX Connection |
| Control Protocols | DMX512, Auto-run, Sound Activated |
| DMX Protocol Modes | 5 |
| DMX Channel Modes | 17 / 27 / 99 / 108 / 168 channels |
| Movement | |
| Tilt Range | 270° + Fine Adjustment |
| Effects | |
| Strobe | 25 flashes per second |
| Dimming | 4 types of 0–100% Linear Dimming |
| Pixel Control | Yes |
| Special Effects | Wash, Beam, Macro Effects, and Customizable Visual FX |
| Electrical & Connectors | |
| Input Voltage | AC 90–240V, 50/60Hz |
| Power Consumption | 850W |
| Power/Data Connections | 3-Pin In/Out |

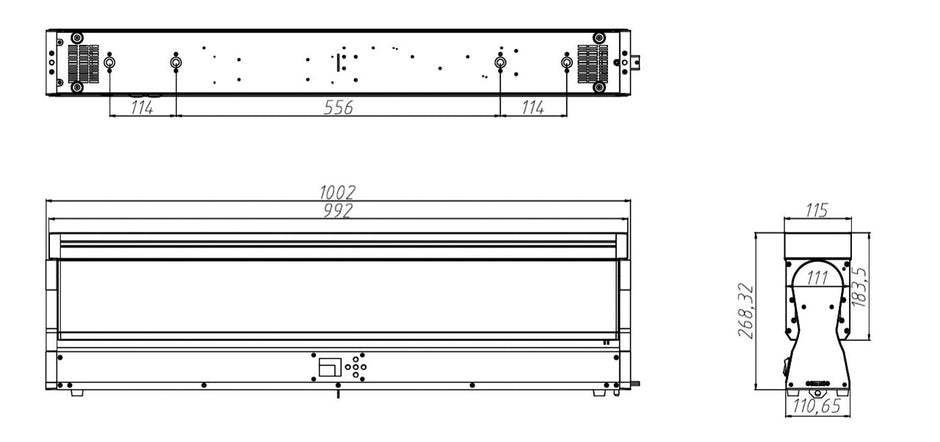

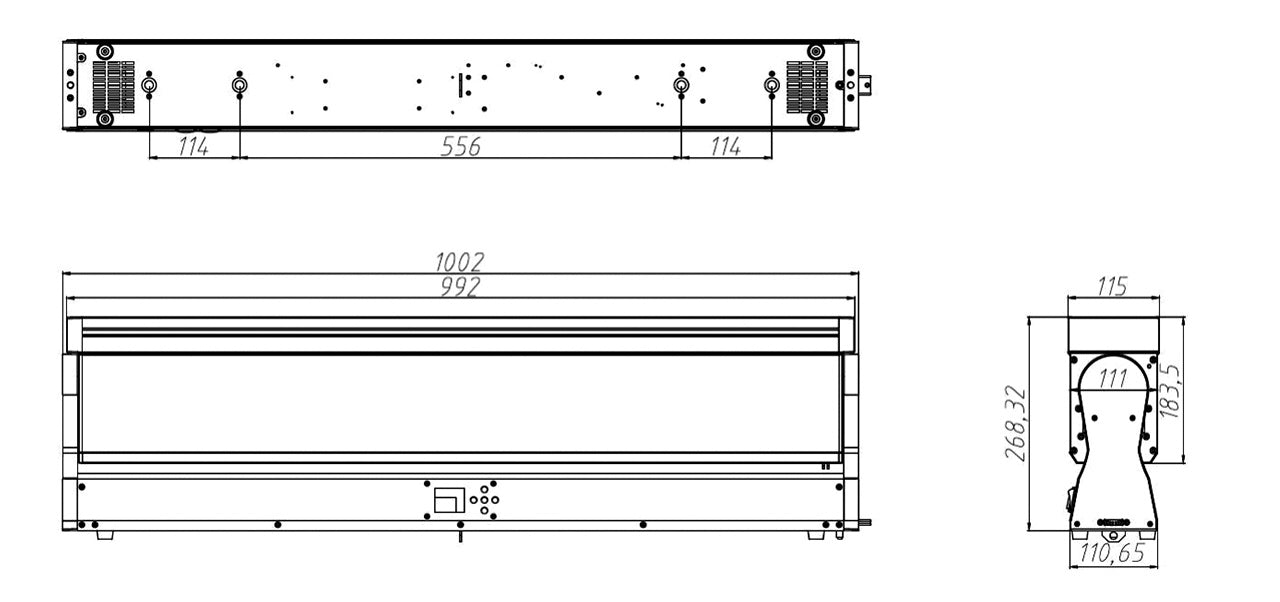

| Fixture Dimensions | |
| Length | 1000 mm (39.4") |
| Width | 115 mm (4.5") |
| Height | 290 mm (11.4") |
| Net Weight | 19.2 kg (42.3 lbs) |
| 4-in-1 Flight Case | |
| Dimensions (L x W x H) | 1230 x 630 x 530 mm (48.4" x 24.8" x 20.9") |
| Total Weight | 108 kg (238.1 lbs) |
| Working Environment | |
| Max Ambient Temperature | 40°C |
| Max Surface Temperature | 65°C |
| Min Operating Temperature | 0°C |
| Protection Rating | IP20 |
| Factory Configuration | |
| Included Accessories | Digital User Manual, Power Cable, Signal Line, Clamps (optional) |
