Bmiteq LineX 16 IP
Sale price
€765,99
Regular price
Regular price
€765,99
Unit price
per
Innovative Technology
User-Friendly Design
Reliable Performance
Couldn't load pickup availability
Description

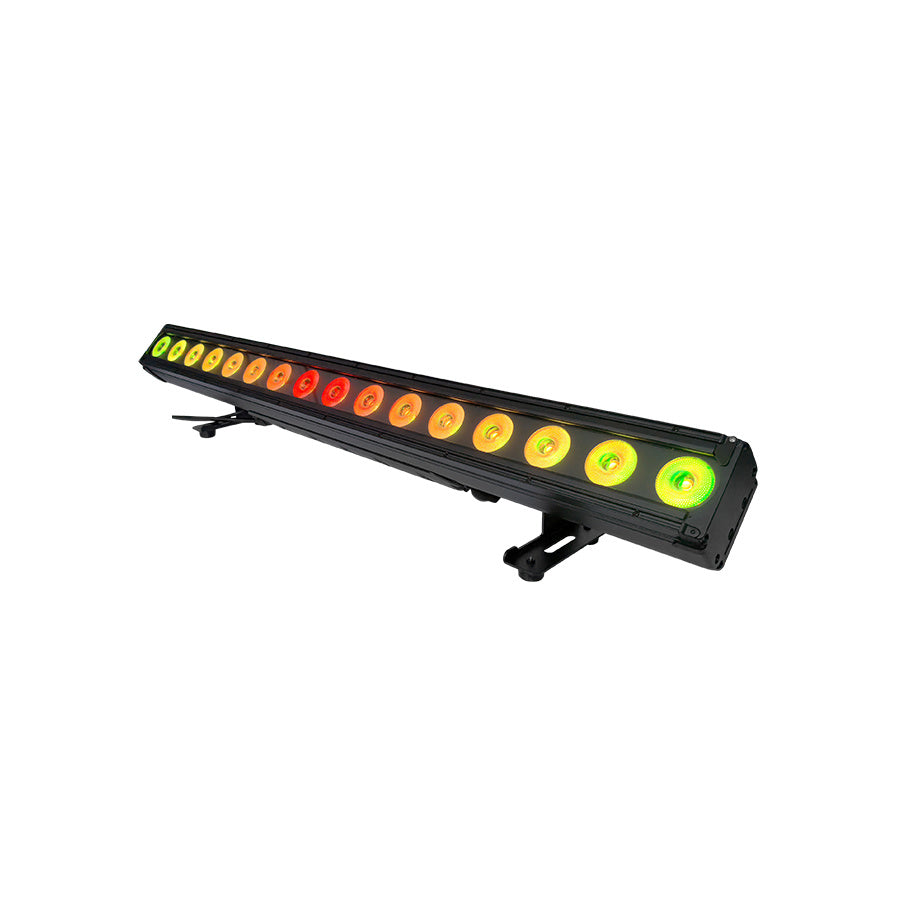

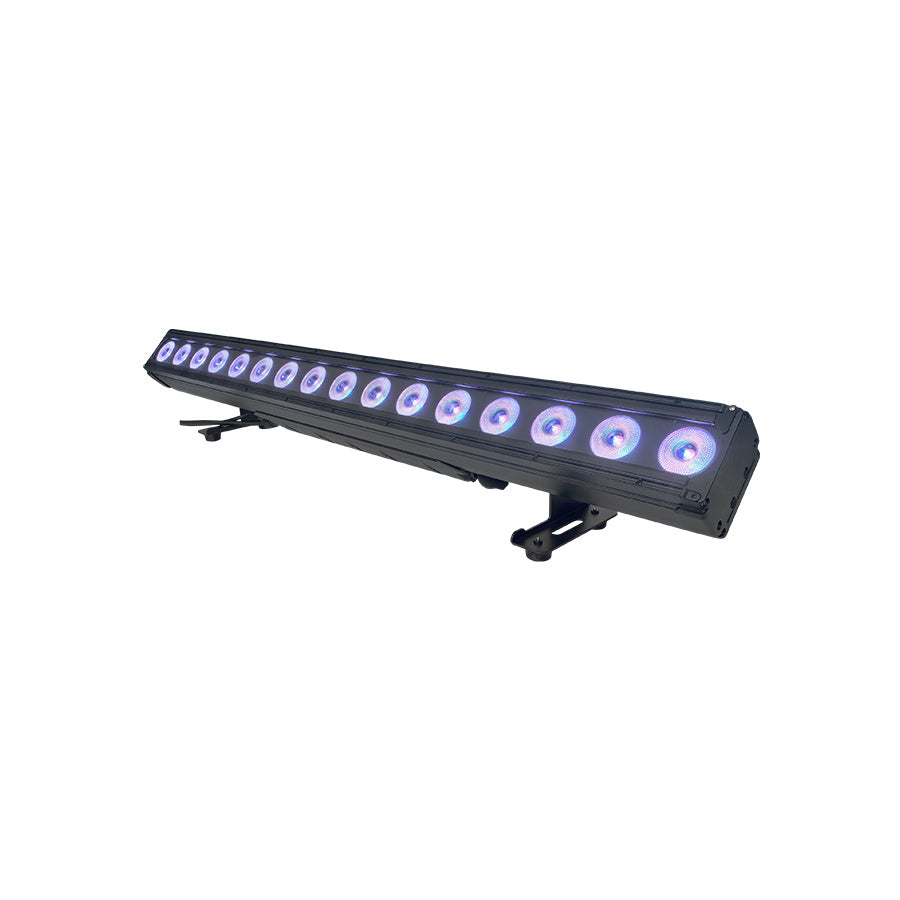

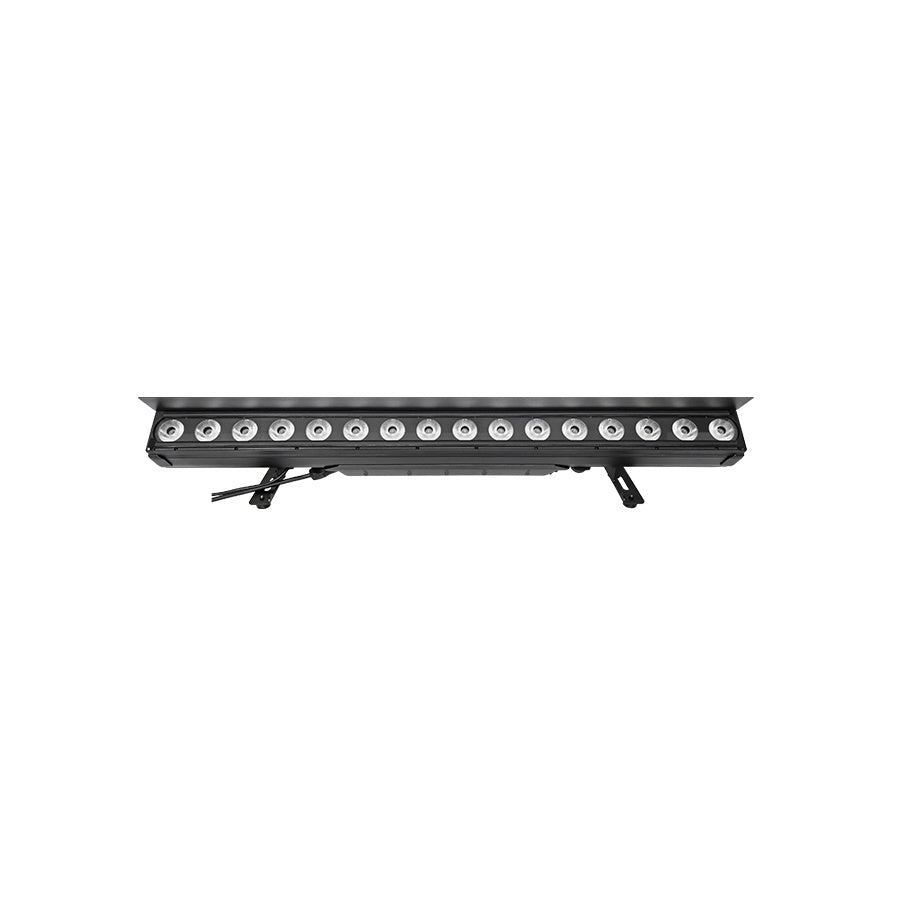

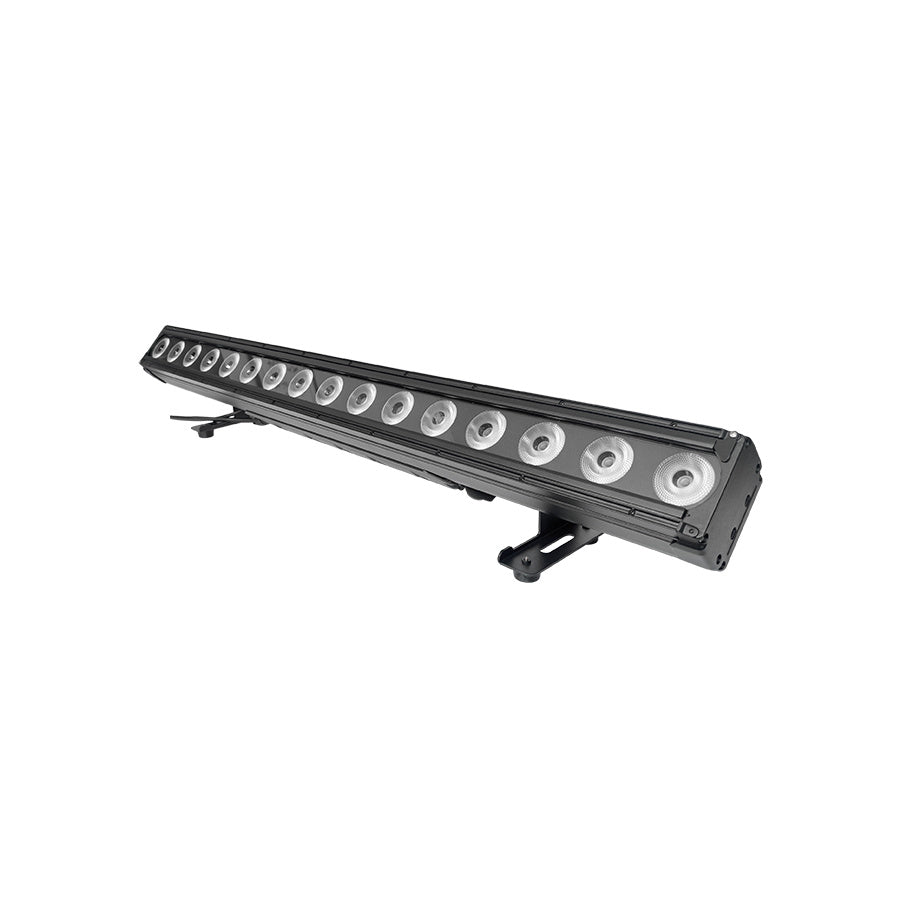

Advanced Pixel-Controlled LED Lighting Fixture – Individual Control, Multi-Protocol Operation, and High Precision Dimming
This professional-grade LED lighting fixture is designed for versatility, precision, and creative freedom—perfect for concerts, theaters, festivals, and entertainment venues. Featuring an intuitive 4-button LED display, it offers seamless navigation for configuration and live adjustments.
With support for DMX512, RDM, Master-Slave, and Auto Run modes, this fixture adapts easily to any lighting environment, whether it’s integrated into a larger show or used standalone. Multiple DMX channel modes—including 11, 27, 64, 64(16-bit), and 75 channels—allow for scalable control complexity, making it ideal for both basic setups and advanced pixel-mapping designs.
Each LED within the fixture is individually controllable, opening the door to dynamic chases, custom sequences, and immersive light shows. The 0–100% linear dimming operates with 8-bit and 16-bit resolution, providing ultra-smooth fades and precise light intensity adjustments. Additionally, the built-in strobe function (1–20 flashes per second) delivers high-speed effects for high-energy performances.
Compact, powerful, and feature-rich, this LED fixture is an essential tool for lighting designers seeking individual pixel control, smooth dimming, and protocol flexibility—all in one professional-grade package.
| Category | Specification |
|---|---|
| Light Source | |
| LED Type | 16 × 15W RGBW LEDs |
| Life Expectancy | 50,000 hours |
| Optical System | |
| Beam Angles | 6°, 15°, 20°, 25°, 45° (optional) |
| Control and Program | |
| Interface | 4 Press Buttons + LED Display |
| Control Protocols | DMX512, RDM, Master-Slave, Auto |
| DMX Channels | 11 / 27 / 64 / 64(16) / 75 |
| Dimming | 0–100% 8/16-bit linear dimming |
| Strobe | 1–20 flashes per second |
| LED Pixel Control | Each LED individually controllable |
| Electrical & Connectors | |
| Input Voltage | AC 90–240V, 50/60Hz |
| Power Consumption | 300W |
| Power In/Out | IP65 PowerCON True1 In & Out, IP65 DMX In & Out |
| Data In/Out | 3-pin or 5-pin IP65 DMX In & Out |
| Housing | |
| Material | Cast Aluminum Body |

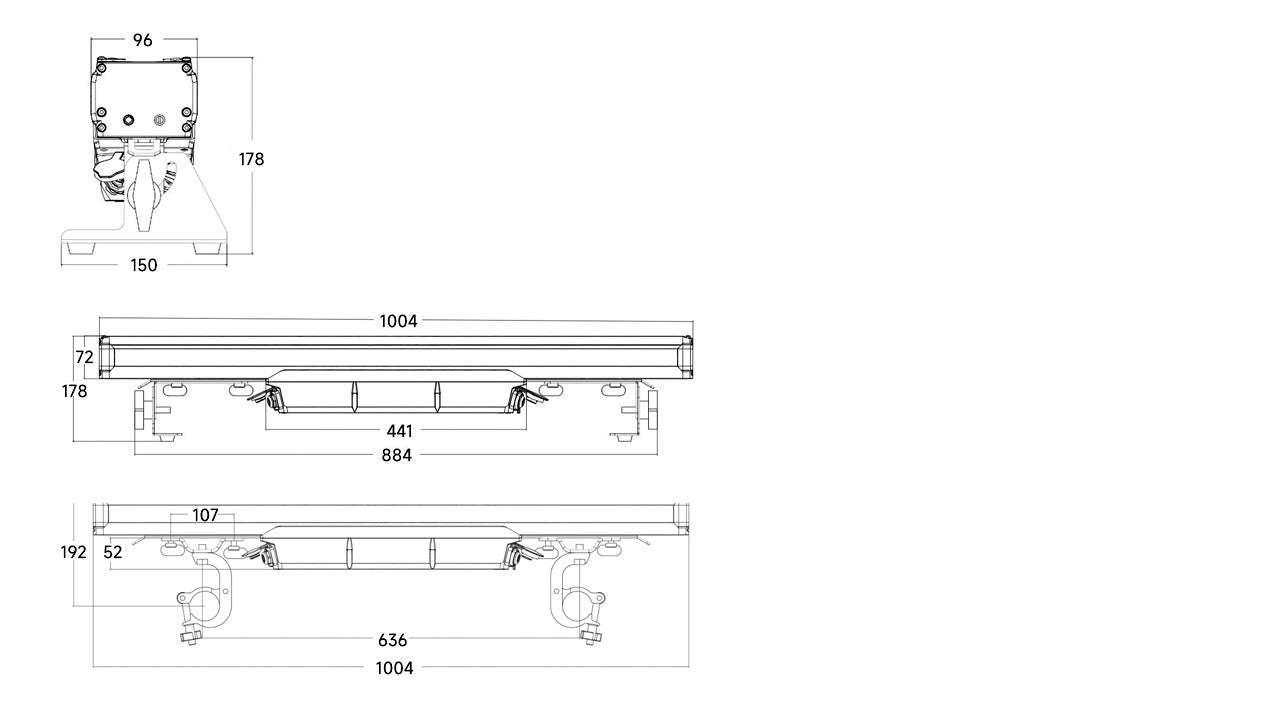

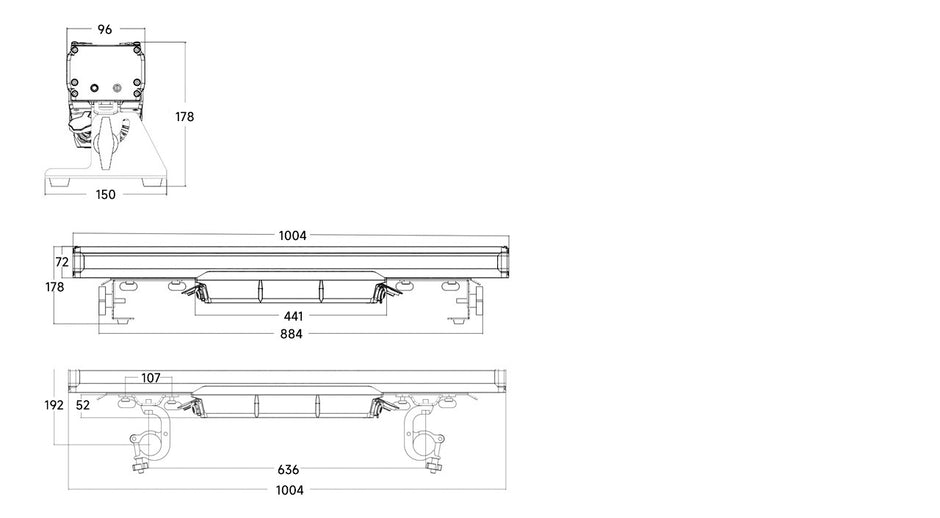

| Fixture Dimensions | |
| Length | 1004 mm (39.53") |
| Width | 96 mm (3.78") |
| Height | 130 mm (5.12") |
| Base Height | 178 mm (7.01") |
| Net Weight | 9 kg (19.84 lbs) |
| Packaging (2in1 Carton) | |
| Length | 1270 mm (50.00") |
| Width | 320 mm (12.60") |
| Height | 220 mm (8.66") |
| Weight | 22 kg (48.50 lbs) |
| Packaging (4in1 Flight Case) | |
| Length | 1180 mm (46.46") |
| Width | 580 mm (22.83") |
| Height | 400 mm (15.75") |
| Weight | 71 kg (156.53 lbs) |
| Packaging (8in1 Flight Case) | |
| Length | 1180 mm (46.46") |
| Width | 600 mm (23.62") |
| Height | 550 mm (21.62") |
| Weight | 115 kg (253.53 lbs) |
| Work Environment | |
| Minimum Operating Temp. | -30°C |
| Maximum Surface Temp. | 70°C |
| Protection Rating | IP65 |
| Factory Configuration | |
| Included Accessories | Quick Lock Omega Brackets, Safety Cable, Floor Stand, Power & DMX Cables |

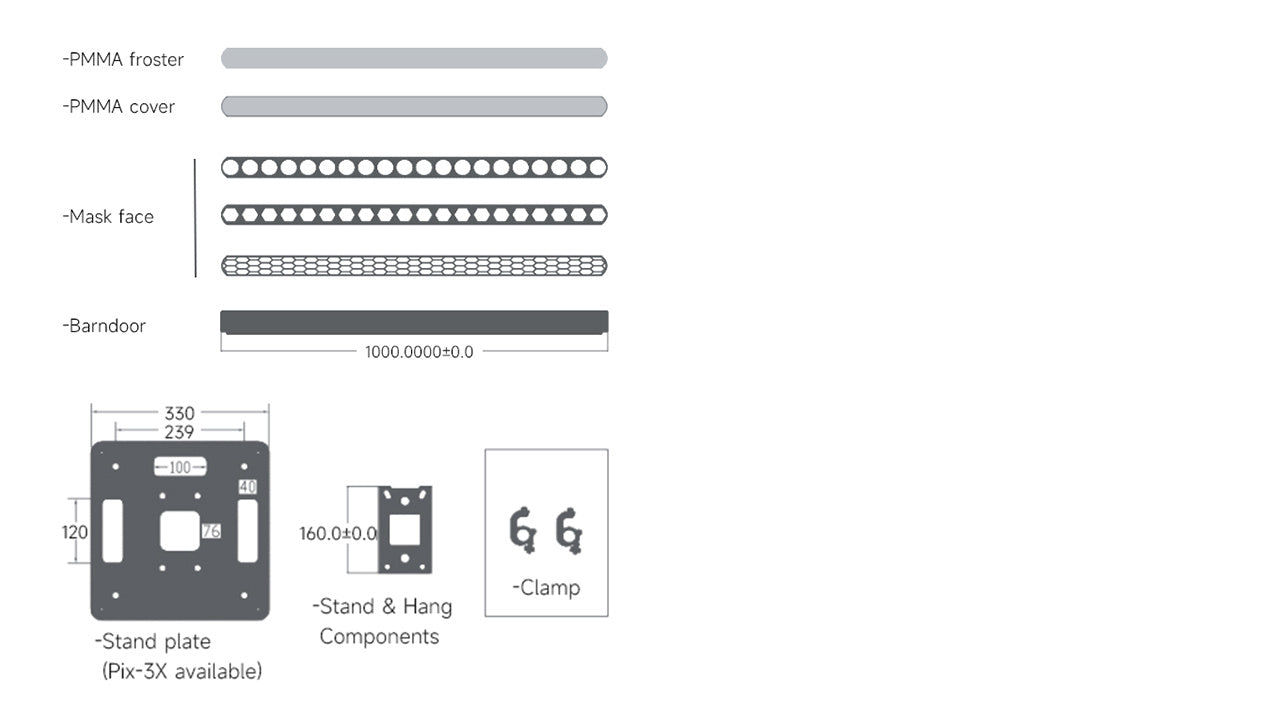

| Optional Accessories | |
| Add-ons | PMMA Froster, PMMA Cover, Barndoor, Stand Plate, Clamp, Infinite Rotation Engine, Flight Case |
| Delivery Contents | |
| In-the-box | 1× LED Bar, 1× Power Input Cable (customizable), 1× DMX Cable, 2× Tilt Brackets with Fast Locks, 2× Stands, 1× Safety Cable, 1× User Manual |
